Incline Belt Washer

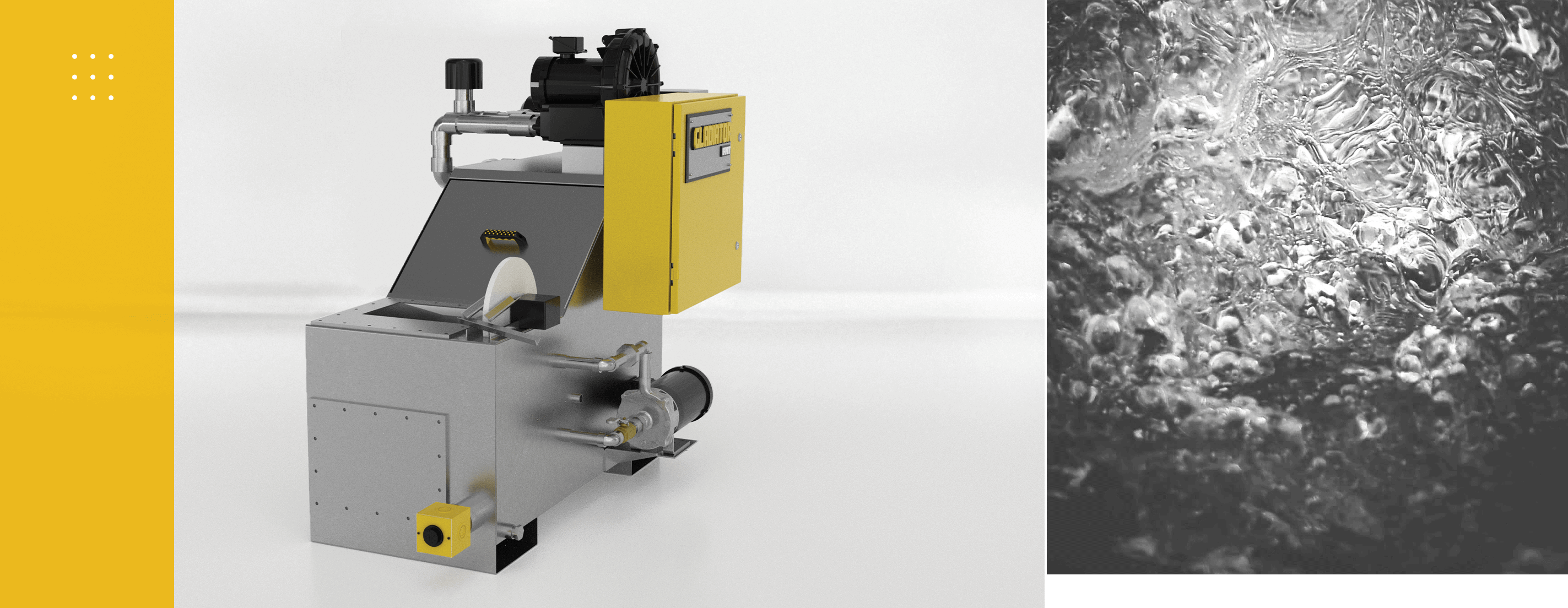

The Gladiator IB

The Gladiator IB was designed as an in-process washer to clean parts (wash only) coming off a stamping operation, cold header, or screw machine. Due to its small, compact layout, the machine can be piggybacked together to provide complete wash and rinse cleaning if necessary.



For More Technical Details

Download Product PDF

Standard Mechanical Equipment

  • Stainless Steel Horizontal Solution Pump
  • Stainless Steel Screw Plug Heater
  • Oil Disk Skimmer w/ High Temperature Disk
  • Industrial Duty Gearmotor
  • Threaded Poly Spray Nozzles
  • High Pressure Regenerative Blower
  • Stainless Steel Air Knife
  • 3/4" Brass Manual Fill Valve
  • 1" Brass Drain Valve

Standard Electrical Equipment

  • NEMA 12 Controls Enclosure
  • Low Level Heater/ Pump Protection
  • Thermostatic Heater Control

Options

  • Automatic 7-Day/24-Hour Heater Timer
  • Automatic Level Control
  • Stainless Steel Bag Filter
  • Stainless Steel Spray Nozzles
  • Casters
  • Variable Speed Belt
  • Custom Load/Unload Chutes Available, Per Request
  • 480V 3PH

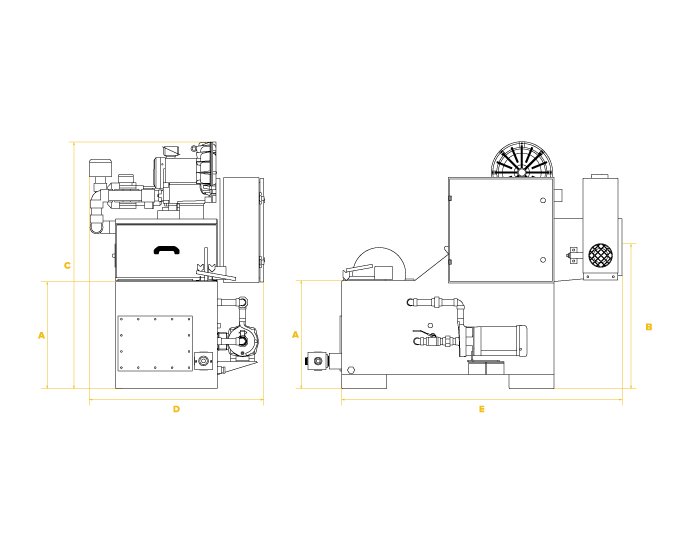

Model A
Load Height (in)
B
Unload Height (in)
C
Height (in)
D
Width (in)
E
Depth (in)
IB-12 25 34 48 50 66
